S-Series Front Wing

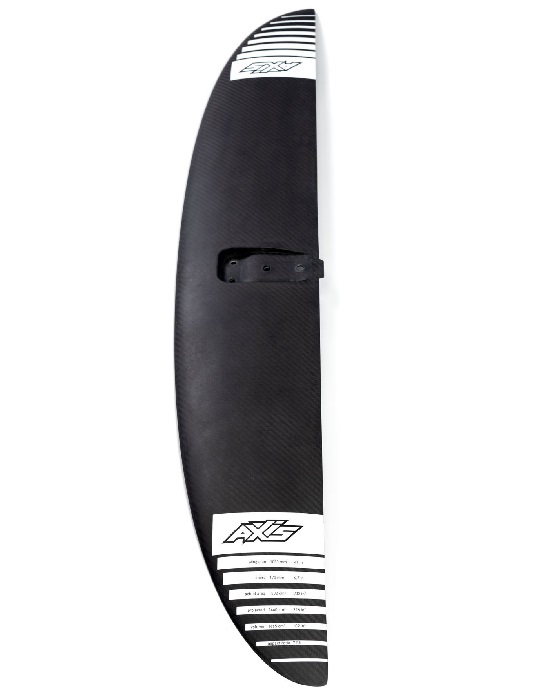

The AXIS S-Series – Front Wing

Spitfire

Imagine a dedicated surf foiling wing, that lets you foil waves like a surfer would. If you’re anything like us, you’ve been dreaming of an effortless turning wing, that inspires confidence when dropping in, that has a gentle, predictable easy lift up onto foil. A foil that not only handles breaches but encourages them. No wave is the same, sometimes you need a turn of speed, and on another you need to slow right down but stay on foil. A wing you can just forget about and get on with the business of enjoying yourself. Of course, that wing has to be capable of pumping you back out to do it all again and again. The wait is over, meet the AXIS Spitfire.
You’ll recognise it by its distinctive elliptical outline, straight median line and lack of aggressive turndown through the tips. Moderate chord lengths, that taper smoothly from the centre to the tips, encourage smooth, predictable but precise turning. Reduced foil thickness for enhanced top end to compliment the greater chords providing easy low end.
Many of these attributes are shared by the ARTPRO Range of wings, and in fact much of what we learned in the development of that line fed into the Spitfire’s make-up.
Through the development process, we put the Spitfire through its paces. The smaller sizes are fast with explosive turning. The larger sizes are great for smaller spots and larger riders. The Spitfires are versatile front wings, able to ride waves or flat water across prone, SUP, winging, wake, downwind, lake pumping and kite foiling disciplines. They do it all.
Spitfire foils are ideally matched with our Black Advance fuselage and Progressive or Skinny rear wing ranges.

Specs:

1100 -Wingspan 1100  – Chord 160mm – Mean average Chord 127.1 – Actual area 1423 – Projeceted area 1398 – Volume 1406 – Aspect ratio 8.66

1030 – Wingspan 1030  – Chord 157mm – Mean average Chord 124.7 – Actual area 1308 – Projeceted area 1285 – Volume 1270 – Aspect ratio 8.26

960 – Wingspan 960  – Chord 154mm – Mean average Chord 122.4 – Actual area 1196 – Projeceted area 1175 – Volume 1142 – Aspect ratio 7.84

900 – Wingspan 900  – Chord 151mm – Mean average Chord 124.1 – Actual area 1099 – Projeceted area 1080 – Volume 1032 – Aspect ratio 7.25

840 – Wingspan 840  – Chord 148mm – Mean average Chord 117.6 – Actual area 1006 – Projeceted area 988 – Volume 928 – Aspect ratio 7.14

780  – Wingspan 780  – Chord 145mm – Mean average Chord 113.6 – Actual area 902 – Projeceted area 886 – Volume 811 – Aspect ratio 6.87

720  –  Wingspan 720  – Chord 142mm – Mean average Chord 111.2 – Actual area 815 – Projeceted area 825 – Volume 795 – Aspect ratio 6.47

NEW ARTPRO

The ART PRO 1401, really challenges the phrases, Bumps too small to go out… or, There’s not enough wind to get going…
Designed as a small-bump down-wind machine, the ART PRO 1401 excels in low-energy swells and light wind conditions. Opening up wing foiling in very light conditions, the ART PRO 1401 is really fast, barely slower than the ART PRO 1201 and turns incredibly well for such a large wing.

After the great reception the ART1099 received, it seemed obvious that we should build a bigger one. We swung into action with the intent of rolling out an ART1199… that’s where the 2-year ARTPRO odyssey began.
Not content to just scale up an already tried and true formula we went to work (our longest development cycle to date), testing countless iterations, all building on the success of the one before, the result we believe is something really special, so special in fact that collectively we decided it would herald in an entirely new range for AXIS, the ARTPRO’s.

Leading the charge is the ARTPRO 1201, designed for fast downwinding and bigger guys, but don’t get the wrong impression, this is the wing Dylan Bez prone paddled up for a World Record Marathon 3hr and 6min continuous Surf pump session (left his board shorts at home so went out in work shorts, he had to stop because it got dark? Averaging 18.8km/h and covering a whopping 58km in distance all without getting wet again)
The design requirements of the ARTPRO 1201, were unprecedented glide, fast and nimble feel, unparalleled large span turning, great breach control, crucial for a wing of this span and finally early lift and low stall speed.

Based on our Black fuselage platform, ARTPRO 1201 will slot straight into your existing quiver, but really comes alive when paired with our Black Advance fuselages and our Skinny rear wings.

If you need screws for this wing, don’t forget to add a screwset to your order.

Fast high-performance wings, that offer a new level of performance potential for riders to exploit. While they deliver amazing performance characteristics, they are relatively easy for competent riders to excel on.
Each member of the ARTPRO Range is a wing in its own right, not simply scaled versions of its closest sibling. All the ARTPRO‘s share the following:

• An extended elliptical outline.
• A straight median line for better turning and control.
• Narrower chords for lower drag overall.
• Less overall turn down especially in the tips.
• Less complicated shapes in general.
• Lower drag foil section on the smaller versions.

ARTPRO foils are ideally matched with our Black Advance fuselage and Skinny rear wing ranges.

ART 1099 – so what’s so special about it? You’ve probably heard rumours about larger ART’s in development. We’ve certainly been inundated with enquiries and requests, but we took our time to get this one perfect, and we can’t be prouder.

With an Aspect Ratio of 10.6, the distinctive look of the ART family is taken to a whole new level, as is the performance.

The releases of the ART 999, 899 , 799 and 699  gave us the confidence to push the wing span and resulting aspect ratio limits further than ever before. With much subtle refinement in R&D, the AXIS ART 1099 has been richly rewarding us with outstanding results.

The glide is out of this world, endless, smooth and yet very fast for its size, but not at the expense of its ability to turn or pump. Low stall speeds and unexpected ease of use that characterise the smaller siblings in the ART range remains and are even enhanced on the ART 1099.

The ART 1099 once again proves that these reduced chord, high aspect wings are the most advanced, hydrodynamically efficient foil designs on the market today. When combined with an AXIS Carbon mast and AXIS Progressive rear wings, they provide the ultimate friction free ride.

A caution though, once you’ve ridden the ART 1099, it’s very difficult to be happy with anything else. The ART 1099 was not designed for Jumping.

Specs ART1099: WINGSPAN: 1099 , MAX CHORD: 130 mm, MEAN AVERAGE CHORD: 103.8mm, ASPECT RATIO: 10.6 ,ACTUAL AREA 1144 square cm , PROJECTED AREA: 1142 square cm , VOLUME: 905cubic cm

Specs ART999: WINGSPAN: 999 mm / 39.37 inches, MAX CHORD: 125mm, 4.92 inches, MEAN AVERAGE CHORD: 101mm, ASPECT RATIO: 9.9 ,ACTUAL AREA 1038 square cm / 160.9 square inches , PROJECTED AREA: 1010 square cm / 156.6 square inches, VOLUME: 871 cubic cm / 53 cubic inches

The AXIS ART 899 sports incredible speed, great glide coupled with effortless pumping and carving. The 899 enjoy stall speeds far lower than similarly sized wings giving intermediate riders an accessible platform for learning to pump and will assure rapid progression.

The reduced chord, high aspect wings are the most advanced, hydrodynamically efficient foil design on the market today. When combined with an AXIS Carbon mast and AXIS Progressive rear wings, they provide the ultimate friction free ride.

Specs ART 899: WINGSPAN: 899 mm / 35.43 inches, MAX CHORD: 120mm, 4.72 inches , MEAN AVERAGE CHORD: 92.22mm , ASPECT RATIO: 9.76 , ACTUAL AREA 850 square cm / 131.8 square inches , PROJECTED, AREA: 830 square cm / 128.6 square inches, VOLUME: 690 cubic cm / 42.1 cubic inches

The AXIS ART 799 sports incredible speed, great glide coupled with effortless pumping and carving. The 799 enjoy stall speeds far lower than similarly sized wings giving intermediate riders an accessible platform for learning to pump and will assure rapid progression.

Specs ART 799: WINGSPAN: 799 mm / 31.5 inches, MAX CHORD: 120mm, 4.72 inches, MEAN AVERAGE CHORD: 88.38mm , ASPECT RATIO: 9.05, ACTUAL AREA 730 square cm / 113.2 square inches , PROJECTED AREA: 707 square cm / 109.6 square inches, VOLUME: 540 cubic cm / 32.9 cubic inches

The AXIS ART 699 Immediately after the release of the ART 899 and  Art 799 we started receiving requests for an even smaller ART, but rather than rushing one to the market, we paused.

We wanted to evaluate exactly how best to achieve that, who would benefit the most, and what conditions would it have to contend with.

The ART699 has considerably less tip turn-down than the larger ARTs. If you’re towing and prone surfing larger more powerful waves, winging in higher wind conditions or are a smaller/lighter rider, this is the ultimate controlled speed machine. Our team riders are generally using the ART 699 with an Advance Ultrashort, Crazyshort or Sillyshort fuselage and pairing it with a smaller Progressive rear like the250/58.

Specs ART 699: WINGSPAN: 699 mm , MAX CHORD: 100mm,  MEAN AVERAGE CHORD: 77.68 mm , ASPECT RATIO: 9.05, ACTUAL AREA 556 square cm , PROJECTED AREA: 543 square cm, VOLUME: 412 cubic cm /

The AXIS HPS high performance series – Wing 1050mm – 980mm – 930mm  – 880mm – 700mm –  650 HPS – Carbon. The High Performance Speed (HPS) wings are FAST. Designed for the ultimate in performance, but yet still usable by most levels of riders. Since the HPS wings use a different foil section, with less camper, we developed a special fuselage that will accommodate all the HPS and future performance front wings. The HPS wings are the ideal performance wings for WINGING and DOWNWIND. High level riders they also SUP, PRONE, WAKE and WINDSURF foil the bigger sizes, while the smaller sizes are perfect for TOW, freestyle WINGING and KITE foiling. This is a new generation of front wings made for FAST performance riding, while it’s still stable and predictable with enormous amount of glide.

PLEASE NOTE: THOSE WINGS ARE ONLY COMPATIBLE WITH THE BLACK SERIES FUSELAGES

Specs 1050: WINGSPAN: 1050 mm  MAX CHORD: 170mm MEAN AVERAGE CHORD: 123mm ASPECT RATIO: 7.55  ACTUAL AREA 1502 square cm CAMBER (as % of CHORD): 2.5 VOLUME: 1665 cubic cm

Specs 980: WINGSPAN: 980 mm, MAX CHORD: 160mm, ASPECT RATIO: 7.49, ACTUAL AREA 1323 square cm, CAMBER (as % of CHORD): 2.5, VOLUME: 1379 cubic cm

Specs 930: WINGSPAN: 930 mm , MAX CHORD: 155mm, ASPECT RATIO: 7.34, ACTUAL AREA 1214 square cm, CAMBER (as % of CHORD): 2.5, VOLUME: 1228 cubic

Specs 880: WINGSPAN: 880 mm, MAX CHORD: 150mm, MEAN AVERAGE CHORD: 123mm, ASPECT RATIO: 7.17, ACTUAL AREA 1112 square cm, CAMBER (as % of CHORD): 2.5, VOLUME: 1088 cubic cm

Specs 830: WINGSPAN: 830 mm, MAX CHORD: 1545m, MEAN AVERAGE CHORD: 120mm, ASPECT RATIO: 7,0, ACTUAL AREA 1002 square cm, CAMBER (as % of CHORD): 2.5, VOLUME: 1018 cubic cm

Specs 700: WINGSPAN: 700 mm, MAX CHORD: 160mm, ASPECT RATIO: 5.63, ACTUAL AREA 890 square cm, CAMBER (as % of CHORD): 2.5, VOLUME: 1060 cubic

Specs 650: WINGSPAN: 650 mm, MAX CHORD: 140mm, ASPECT RATIO: 5.68, ACTUAL AREA 744 square cm, CAMBER (as % of CHORD): 2.5, VOLUME: 716 cubic

The AXIS Board Spectrum Carve Series Front Wing 1060mm – 970mm – 890mm -810mm – 740mm The Broad Spectrum Carve (BSC) wings are a new direction into easy to ride wings, with good amount of performance embedded to the design. Perfect for all round riding including entry level riders. The larger sizes are ideal for PUMPING, SUP, WINGING, WAKE. As we go down on sizing, 890-810-740 are high performance PRONE, WINGING and KITE wings.

Specs 1060: WINGSPAN: 1060 mm  MAX CHORD: 200mm MEAN AVERAGE CHORD: 163mm ASPECT RATIO: 6.51  ACTUAL AREA 1802 square cm CAMBER (as % of CHORD): 3.0

Compatible only  with the S-Series fuselage

Specs 970: WINGSPAN: 970 mm , MAX CHORD: 190mm , ASPECT RATIO: 6.27, ACTUAL AREA 1572 square cm , PROJECTED AREA: 1501 square cm  , VOLUME: 2313 cubic cm

Compatible only with the S-Series fuselage

Specs 890 : WINGSPAN: 890 mm , MAX CHORD: 170mm , ASPECT RATIO: 6.43 , ACTUAL AREA 1290 square cm
PROJECTED AREA: 1232 square cm , VOLUME: 1697 cubic cm

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH THE BLACK SERIES FUSELAGE

Specs 810 : WINGSPAN: 810 mm, MAX CHORD: 155mm, ASPECT RATIO: 6.42, ACTUAL AREA 1070 square cm, PROJECTED AREA: 1022 square cm, VOLUME: 1284 cubic cm

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH THE BLACK SERIES FUSELAGE

Specs 740 : WINGSPAN: 740 mm, MAX CHORD: 140mm, ASPECT RATIO: 6.49, ACTUAL AREA 883 square cm, PROJECTED AREA: 844 square cm, VOLUME: 757 cubic cm

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH THE BLACK SERIES FUSELAGE

The AXIS S-Series 1310mm Carbon Front Wing  For 2023 we are adding yet a bigger and even more efficient wing. The 1310. The 1310 PNG is a beast of a wing with a huge AR. With nearly 10 AR the 1310 will dominate any small conditions, bringing endless glde and efficiency. NOTHING LIKE IT – Comparing the 1150 to the 1300, the 1150 pumps better, with a lower stalling speed. The 1310 glides better and carries a bit better speed so it’s better suited for WINGING

Specs: WINGSPAN: 1310 mm, MAX CHORD: 180mm , ASPECT RATIO: 7.72, AREA 1778 sq/in, PROJECTED AREA: 1713 square cm, VOLUME: 2116 cm3

PLEASE NOTE: THIS WING IS  ONLY COMPATIBLE WITH RED  SERIES FUSELAGES

The AXIS S-Series 1150mm Carbon Front Wing is the biggest of our newest generation of high aspect wings, focusing on longest and most efficient gliding and pumping. The AXIS S-Series 1150 wing was designed to dominate the smallest foiling conditions. From light wind WING Surfing, to tiny bumps SUP and SURF foiling, to effortless lift behind the BOAT, and DOCK starts and PUMPING, the AXIS 1150 performs like no other high aspect wing ever dreamed of. The amount of glide and pumping ability of the AXIS 1150 is tremendous. And probably this is why our testers nominated the AXIS 1150 as the WING SURFING wing.

Specs: WINGSPAN: 1150 mm, MAX CHORD: 180mm , ASPECT RATIO: 7.72, AREA 1778 sq/in, PROJECTED AREA: 1713 square cm, VOLUME: 2116 cm3

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH RED  SERIES FUSELAGES

The AXIS S-Series 1010mm Carbon Front wing is a new generation of high aspect wings, focusing on long, fast gliding and pumping. Using a different foil section than our S-Series 1000 and S-Series 900 carbon wings, the 1010 is designed with easy Downwinding in mind, while offering tremendous amount of glide, and control.

Specs: WINGSPAN: 1010 mm ,  CHORD: 160mm,  ACTUAL AREA 1430 square cm, PROJECTED AREA: 1430 square cm, VOLUME: 1732 cubic cm

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH RED  SERIES FUSELAGES

The AXIS S-Series 910mm Carbon Front wing is the smallest of our newest generation of high aspect wings, focusing on longest and most efficient gliding and pumping. Due to its size, the 910 turns quicker, and rides with higher speeds than the 1010 and 1150.

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH RED  SERIES FUSELAGES

NEW The AXIS S-Series 910mmB Carbon Front wing  our newest generation of high aspect wings, focusing on longest and most efficient gliding and pumping. Due to its size, the 910 turns quicker, and rides with higher speeds than the 1010 and 1150. PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH  BLACK SERIES FUSELAGES

Specs: WINGSPAN: 910 mm / 36 inches, MAX CHORD: 160mm, 6.3 inches, ASPECT RATIO: 6.8, ACTUAL AREA 1268 square cm / 196 square inches, PROJECTED AREA: 1218 square cm / 189 square inches
VOLUME: 1458 cubic cm / 89 cubic inches

NEW The AXIS S-Series 850mmB Carbon Front wing  the smallest PNG fo our newest generation of high aspect wings, focusing on longest and most efficient gliding and pumping. Due to its size, the 910 turns quicker, and rides with higher speeds than the 1010 and 1150.

Specs: WINGSPAN: 850 mm / 36 inches, MAX CHORD: 150mm, 6.3 inches, ASPECT RATIO: 6.8, ACTUAL AREA 1128 square cm / 176 square inches, PROJECTED AREA: 1178 square cm / 179 square inches
VOLUME: 1458 cubic cm / 89 cubic inches

PLEASE NOTE: THIS WING IS  COMPATIBLE ONLY WITH BLACK SERIES FUSELAGES

All the AXIS front wing comes with cover included on the price!
